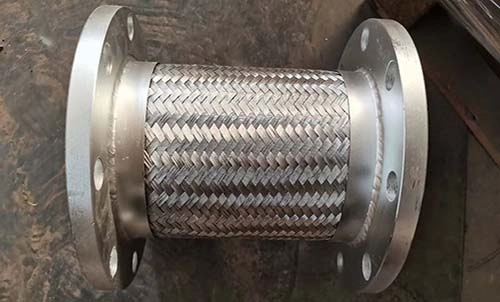

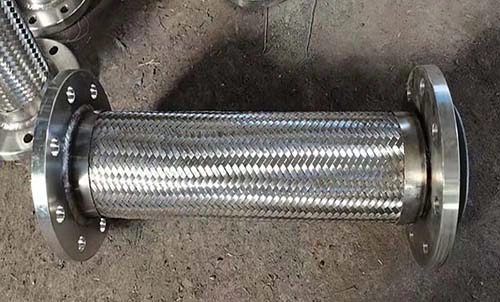

Metal hoses, also named metal hose reel, metal hydraulic hose, high pressure flexible metal hose, or stainless steel hydraulic hose, are mainly composed of inner corrugated metal tube, outer metal mesh braid sleeve and end metal hose clamp/connector. Its function is to create soft connection in the middle of pipeline or equipment, compensate for relative displacement, and reduce vibration and noise. It can also be used to transport low-temperature fluids and high-temperature gases.
Application area:
-
High pressure flexible metal hose is used in petrochemical and coal chemical pipeline projects to compensate for pipeline displacement and foundation settlement, resist earthquakes, and absorb vibrations.
-
Inner corrugated metal tube has good high temperature resistance (+420℃), so it can transport high temperature gas and fluid.
-
The low temperature resistance (-196℃) of the stainless steel hydraulic hose ensures the stability and safety of the high pressure stainless steel braided hose in the transportation of low temperature fluids.
-
High pressure metal hose can transport food-grade fluids, such as wine, milk, beer, liquor, drinking water, soda water, etc. Since the material of high pressure flexible metal hose is stainless steel, which is a food-grade material, it can ensure that the quality of the product is not affected, so it can replace food-grade plastic hoses.
-
Metal flex hose has a strong pressure bearing capacity. The pressure range of the hose is generally PN0.6-32.0Mpa, and the maximum is 42.0MPa. Therefore, stripwound metal hose with greater pressure bearing capacity will be used in places with vacuum negative pressure.
