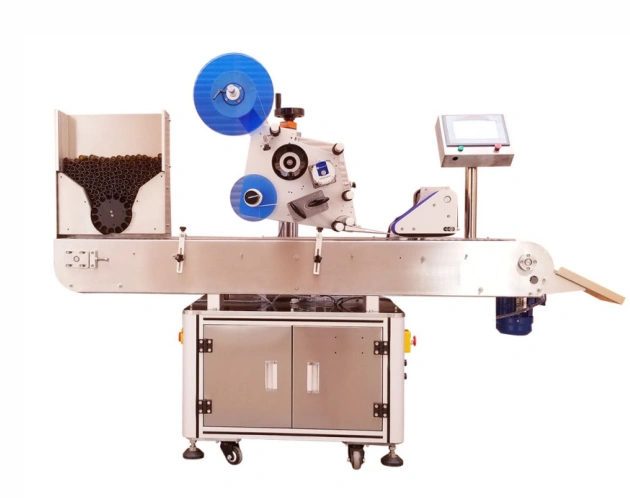

XL-T823 Full automatic horizontal round bottle labeling machine is especially designed for cylindrical bottle labeling which can not be placed upright or requires horizontal conveying. It possesses horizontal feeding, roller positioning, and automatic labeling technology to achieve high speed, high precision and stable continuous labeling operations. XL-T823 labeling machine can be used for cylinder such as test tubes, vials, oral liquid bottles, ampoule bottles, small plastic bottles, electronic cigarettes, rubber tubes, cosmetic bottles, and it can satisfy different process requirements such as full-circle labeling, half-circle labeling, and fixed-point labeling.
This labeling machine adopts PLC intelligent control system and touch screen human-machine interface, with easy operation and easy parameters adjustment, it can quickly switch between different product specifications, and to improve production efficiency, low down manual cost. It is ideal labeling package choice for pharmaceutical, food, chemical, daily chemical and electronics industries.
Pharmaceutical Industry
blood collection tubes; test tubes; vials; ampoules; oral liquid bottles; small medicine bottles
Cosmetics Industry
essential oil bottles; eye drops; cosmetic bottles; skin care small bottles; fragrance bottles
Food Industry
seasoning bottles; food additives bottles; small beverage bottles; health supplements bottles
Chemical Industry
glue bottles; ink bottles; chemical reagent bottles; lubricant bottles
Electronic Industry
electronic cigarettes; atomizers; battery tubes; small electronic component packaging bottles
|
Technical Parameters |
The following are the technical parameters of the standsrd model, if have other special requirements and function can be customized |
|
Labeling Accuracy |
±0.1mm (not include product and labeling error) |
|
Labeling Speed |
15-30 pcs/min (realed to product size) |
|
Applicable Product Dimensions |
Φ 10~30mm |
|
Applicable Label Size |
Length 20-300mm Width 20-120mm (base paper) |
|
Device Dimension |
2020*735*1425mm (L*W*H) |
|
Applicable Power Supply |
220V/50HZ |
|
Weight |
220KG |
|
Applicable Label Roll Inner Daimeter |
Φ76mm |
|
Applicable Label Roll Outer Daimeter |
Φ280mm |
Adopting advanced servo control system and high-quality label detection sensor, high precision labeling positioning. Labeling error can be controlled within ±1mm to ensure the label is flat, beautiful, and free of bubbles and wrinkles.
High speed operation, labeling output can reach 30~200 bottles/minute (exact speed depends on different product size).
Designed for small round bottles and test tubes which cannot stand upright, adopting horizontal conveyor design to ensure a conveyor stability and improve labeling accuracy.
Equipped with color touch screen control system, it can store multiple sets of product parameters. No complex debugging needed when changing product specifications and greatly reducing downtime.
The entire machine is made of high-quality SS 304 material and aluminum alloy. It meets the production requirements of the food and pharmaceutical industries. Corrosion-resistant, easy to clean, and has a long service life.
